COMBINED UNIT ELEC.+ULT.+LAS (30 WF.) – EL.26-ELUT
COMBINED UNIT ELEC.+ULT. (26 WF.) – EL.25-ELUT
COMBINED UNIT ELEC.+ULT.+LAS. (30 WF.) – EL.26-ELUT

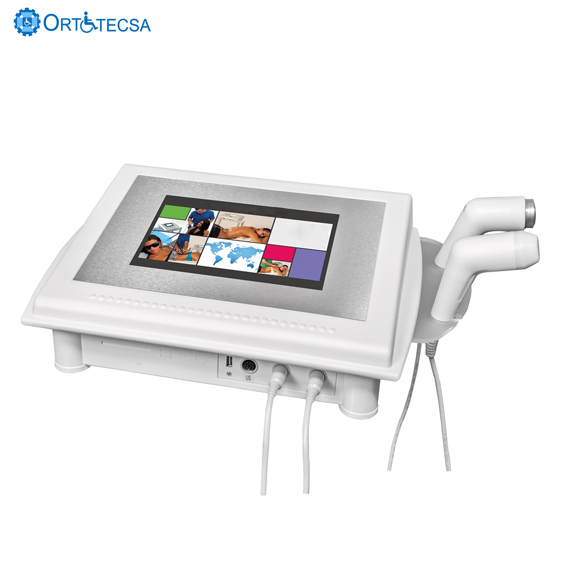

This equipment can be used to administer electrotherapy (2 channels) and ultrasound at 1.3 MHz (I channel) in combination or separately. Model El.26-ELUT also combines laser (1 output).
Multi-frequency head operates at 1.3 MHz with contact control, waterproof for administering treatment under water.
Option to connect the unit to the vacuum therapy unit (EL. 75-VC) for combined applications (Models El.24+EL.25).
Voltage: 220-240V / 50-60Hz. On request 110-127V / 50-60Hz.
Electrotherapy:
AC and DC operating modes.
I/T curve with the capability to compare the values at the start and finish of the treatment.
Distribution of all medium and low frequency currents.
Ultrasound:
Output of 0-2 Wcm² in continuous mode and 0-3 Wcm² in pulse mode.
Laser:
905 nm.
EL.24-ELUT
16 wave forms (low and medium frequency).
Over 500 suggested therapeutic applications (electro-therapy and ultrasound)
EL.25-ELUT
26 wave forms (low and medium frequency).
Over 100 suggested therapeutic applications (electro-therapy, ultrasound, combined protocols).
Memory card reader. 100 programs in memory + 200 free programs on each card.
EL.26-ELUT
30 wave forms (low and medium frequency).
Over 400 suggested therapeutic applications (electrotherapy-ultrasound, ultrasound-combined protocols).
Usb Key 4Gb. 400 programs in memory + 400 free programs on each card.
To see more technical specifications and optional accessories download the technical sheet on pdf. DOWNLOAD PDF
|
Accessories
included EL.24-ELUT:
|
Accessories included
EL.25-ELUT:
|
Accessories included
EL.26-ELUT:
|
|
1 multi-frequency head at 1/3 MHz and 5 cm² emitter area with contact sensor. |
1 Smart Card |
1 USB Key 4 Gb |
